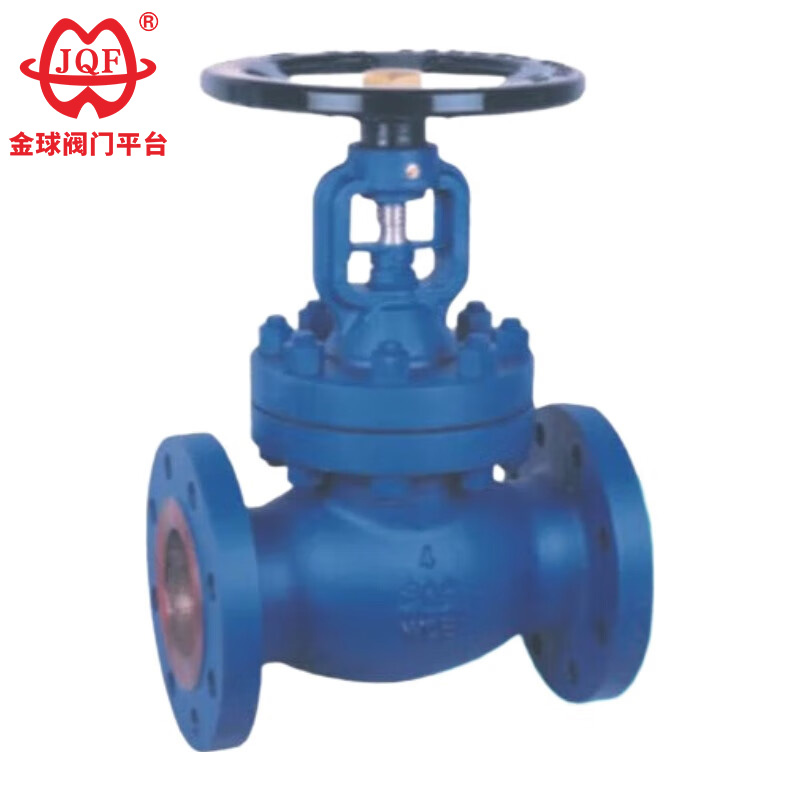

Sigillum Globe Valve mugitum

JQF Valvae altae qualitatis globulus mugitus sigillum valvae follis internae notae cernitur. Finis inferior immaculati follis ferri ad plectrum iuncta est, alter vero finis inter valvae corpus et valvae operculum ad sigillum statice collocatur. Folla ad truncum valvae iuncta sunt ut operativae stabiles effectus servent et ne valvae caulis vibratio per valvae vibrationem causata sit. Specimen est fistularum quae vaporem, flammabilem, explosivum, calorem transferendi oleum, altum puritatem, instrumenta toxica portant.

Mitte Inquisitionem

depictio producti

JQF Valve factory manufactures durable bellow seal globe valves suitable for cutting or connecting pipeline media under various working conditions in industries such as petroleum, chemical, pharmaceutical, fertilizer, and power. The nominal pressure is PN1.6～PN4.0MPa, and the working temperature is -20℃～350℃. The double robust and durable bellows seal design (bellows + packing) ensures zero leakage of the valve stem. At our company, you can find a wide variety of valves, flanges, pipe fittings, pipes, and other industrial accessories. Our engineers work tirelessly to innovate and improve our products to better serve our customers.

1. Aliquam Quality Optimization
Globus Valvae Follis Sigilli notat structuram rationalem, signationem certam, et speciem exquisitam.
2. Dura Obsignans Superficies
In Globe Valvae Bellow Sigillum firmatum est admixto cobalto fundato, oblato indumento et corrosione resistente, resistentia frictional humilis, et vitae spatium signanter extensum.
3. Triplex Caulis Praesidium
Globe Valvae Follis Sigillum auctum caloris curationem patitur et processuum obdurationem superficies, inde in praestantibus corrosionibus et resistentia induitur.
4. Geminus-Insurance Follis Sigillum
Canales recti-anguli fluunt, cum follibus patented designatis ut sigillum tutius obtineat.
5. Intuitive et Visual dedicatio Position
Evidenter indicatur positio caulis valvae ad operationem intuitivam.
6. Flexibile Aliquam et Adaptability
Component materias, magnitudinum LABIUM, et specificationum interfaciei speciem fieri possunt ad condiciones specificas operandas.

Features:

1. Sigillum Globe Valvae Folleae in lineamentis notae rationalis structurae et certae obsignatio. Dual folles robusti designatio sigilli (follis + sarcina) lacus nulla e caule valvula efficit. Nullum liquidum detrimentum auget plantae armorum salus et signa obsignatio occurrat.
2. Globi Valvae Sigilli Bellow obsignationis superficies Co-substructio duris mixturae obducitur, praestantem adhibens resistentiam, corrosionem resistentiae, et resistentiam abrasionis, quae in longa vita inserviunt. Denotat situm elevatum magis intuitive.
3. Valvae caulis exstinctionem et temperantiam et curationem nitridicam superficiei patitur, praestantem corrosionem resistentiae et frictioni reductionem praebens; valvae caulis elevatio positionis indicatarum magis intuitiva est.

specifications

genus structuram	BB-BG
Coegi modus	Manual
Coegi modus	pneumaticum
design signa	DIN3356
Structura longitudinis	DIN3203
LABIUM ad coniungere	DIN2543-2545
Test et inspectionem	DIN3230

Partes materiae productum

Vide numerum	nomen	Materia
1	Corpus	GS-C25、CF8、CF3
2	Disc	2CR13、F304、F316
3	hastile pin	F304、F316
4	Follis conventus	F304、F316L
5	cap	GS-C25、CF8、CF3
6	filler	Flexibile graphitePTFE
7	Pressura sleeve	25#、F304、F316
8	Positioning pieces	25#、F304、F316
9	Caule nut	mixtura aeris ZQA19-4
10	Handwheel	Carbon chalybe
11	et hat	25#
12	Calicem oleum	aeris
13	Hex nuces	ASTMA193 2H、A193-8、A193-8M
14	Studia	ASTMA193 B7、A193-B8、A193-B8M
15	Gasket	Flexibile graphite + immaculatum ferro
16	Valvae caulis	2Cr13、F3

Product speciem ac structuram magnitudine

Nominal diameter	Praecipuae dimensiones et nexus dimensiones
Nominal diameter	L	D	D1	D2	b	Z-d	H	D0
WJ41Y-16C
15	130	95	65	45	14-2	4-Φ14	170	120
20	150	105	75	55	14-2	4-Φ14	190	140
25	160	115	85	65	14-2	4-Φ14	205	160
32	180	135	100	78	16-2	4-Φ18	270	180
40	200	145	110	85	16-3	4-Φ18	310	200
50	230	160	125	100	16-3	4-Φ18	358	240
65	290	180	145	120	18-3	4-Φ18	373	240
80	310	195	160	135	20-3	8-Φ18	435	280
100	350	215	180	155	20-3	8-Φ18	500	300
125	400	245	210	185	22-3	8-Φ18	614	320
150	480	280	240	210	24-3	8-Φ23	674	360
200	600	335	295	265	26-3	12-Φ23	811	400
250	650	405	355	320	30-3	12-Φ25	969	450
300	750	460	410	375	30-3	12-Φ25	1145	580
350	850	520	470	435	34-4	16-Φ25	1280	640
400	980	580	525	485	36-4	16-Φ30	1452	640
WJ41Y-25C
15	130	95	65	45	16-2	4-Φ14	170	120
20	150	105	75	55	16-2	4-Φ14	190	140
25	160	115	85	65	16-2	4-Φ14	205	160
32	180	135	100	78	18-2	4-Φ18	270	180
40	200	145	110	85	18-3	4-Φ18	310	200
50	230	160	125	100	20-3	4-Φ18	358	240
65	290	180	145	120	22-3	8-Φ18	373	240
80	310	195	160	135	22-3	8-Φ18	435	280
100	350	230	190	160	24-3	8-Φ23	500	300
125	400	270	220	188	28-3	8-Φ25	614	320
150	480	300	250	218	30-3	8-Φ25	674	360
200	600	360	310	278	34-3	12-Φ25	811	400
250	650	425	370	332	36-3	12-Φ30	969	450
300	750	485	430	390	40-4	16-Φ30	1145	580
350	850	550	490	448	44-4	16-Φ34	1280	640
400	980	610	550	505	48-4	16-Φ34	1452	640
