JQF Valvae officinarum officinarum qualitatem GB vexillum altum valvulae portae flanged, quae late utuntur in potestate petrochemical, scelerisque, aliisque producti petrolei et fistulae vaporis ut aperiendi et claudendi machinis instrumentorum pipelinirum connectendi vel abscisionis. Eligendo varias materias, nativus GB vexillum valvulae portae flanged, variis instrumentis aptae sunt ut aqua, vapor, oleum, acidum nitricum, acidum aceticum, media oxidizing acetica, et urea, et in promptu sunt in manibus, calces revellere, et versiones electricae coegi.
Pre-Installation SCUTULATUM
Cognoscere GB vexillum valvulae portae flangae materiales convenientiae cum instrumentis fluidis, temperatura et pressione. Facies LABIUM inspice pro exasperat, ut gasket materiales condiciones servitii compositus, et fulmina/nuces ad robur requisita confirmant.
Installation Gratia diei et noctis
Nunquam vi-align GB vexillum valvulae portae flanged. Misalignment sedem corruptelam facit, libero vel lacus structuram. Support fistulae independenter prope valvae. Obstringere sensim fulmina in stella exemplar ad torques uniformes. Retorque post 24-48 horas systematis operandi.
Disciplina operational
Plene aperta vel plene claudunt GB vexillum valvulae portae flangae - loca aperta partim accelerant sedem/portam exesa ex alta velocitate fluunt. manubriis tantum utere; extorquet vitare / vectibus. Stipes lubricationis (EP-gradus uncto) est facienda quarta pars.
Testis Sustentacionem
Hydrostatice test GB vexillum valvulae portae flanged post institutionem ad 1.5× PN aestimationem ante systema committendi. Valvulae segregatae ab amni instrumento in tentatione. Annuo: glandulae emissiones stipare, caulis corrosio, et integritas LABIUM iuncturae. Repone attrita stipare anulos statim ad derivandum emissiones fugitivorum.
Repono Tractantem
Copia valvulae domesticas ab humore munitae. Caps in finem usque ad institutionem serva.
1. Princeps efficientiae consilium: GB vexillum valvulae portae flangae lineamentum rationabiliter figuratum designatur quo spatio efficaciter utitur, valvae corporis firmitatem obtinens superiorem, resistentia fluida elevata, et coefficiens fluxus optimized.
2. Sigillum vita auctum: Obsignatio interfacies ferro immaculatam et carbidam tunicam adhibet, extenuando togam et signanter ad vitam servitutis extendens.
3. Certa et facilis ad operandum: Flexibile graphite sarcina efficit integritatem sigilli firmi, consequens in operatione lenis et torques operandi minimi.
4. Modi actuationis versatiles: GB vexillum valvulae portae flangae compatiuntur cum variis mechanismis actuationum, inclusis manualibus, pneumaticis, electricis, et machinis agitatis, ad diversa applicationis requisita.
5.Diversae structurae: Available in variis conformationibus structurarum, incluso cuneo flexibili portae una, cuneo rigido portae singulae, vel portae parallelae (duplici).
Design specifications: GB/T 12234
Structura longitudinis: GB / T 12221
Connecting flange: JB / T 79.1
Test et inspectio: JB / T 9092
Pressura - Temperature: GB / T 9131
Product Lepidium sativum: GB / T 12220
| Nominal pressurePN（MPa) | casus | test pressura（MPa) | signatus | |
| Signati (liquida) | Sigillum (gas) | |||
| 1.6 | 2.4 | 1.8 | 0.6 | 1.8 |
| 2.5 | 3.8 | 2.8 | 0.6 | 2.8 |
| 4.0 | 6.0 | 4.4 | 0.6 | 4.4 |
| 6.4 | 9.6 | 7.0 | 0.6 | 7.0 |
| 10.0 | 15.0 | 11.0 | 0.6 | 11.0 |
| 16.0 | 24.0 | 18.0 | 0.6 | 18.0 |
| Testa materia | Idonea media | Locus temperatus (℃) |
| Carbon chalybe (C type) | Aqua, vapor, oleum | ≤425 |
| Chromium nickel titanium steel (P type) | Acida nitrica | ≤200 |
| Chrome nickel molybdenum titanium steel (R type) | Acidum aceticum | ≤200 |
| Chrome-molybdenum chalybeum (type I) | Aqua, vapor, oleum | ≤550 |
| Corpus, bonnet | Valvae lamina, sedes | Valvae caulis | Caule nut | filler | Handwheel |
| Carbon chalybe | Summus qualitas carbonis chalybe + carbida vel immaculata chalybe | Chrome immaculatam ferro | aluminium aereum | Graphite asbesto stipare | ferrum oboediens |
| Chromium nickel titanium steel | Diver immaculatus, immaculatus ferro + coagmentatum carbide | Chrome nickel-titanium immaculatum steel | aluminium aereum | Teflon | ferrum oboediens |
| Chromium nickel molybdenum titanium steel | Diver immaculatus, immaculatus ferro + coagmentatum carbide | Chrome nickel-titanium immaculatum steel | aluminium aereum | Teflon | ferrum oboediens |
| Chrome-molybdenum chalybeum | Admisce ferro + Carbide | Chrome-molybdenum chalybeum | aluminium aereum | Asbesto flexibile | ferrum oboediens |

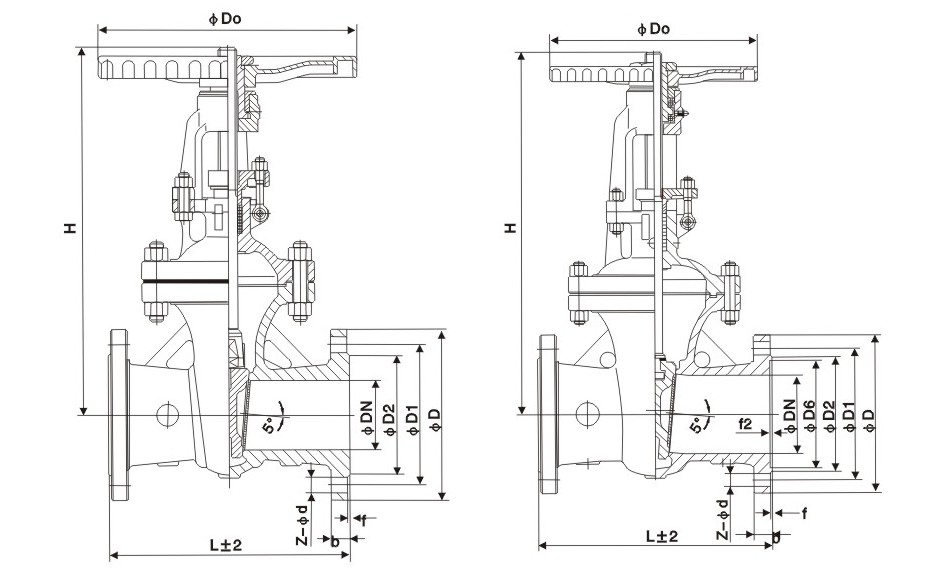

| Nominal diameter | Praecipuae dimensiones et nexus dimensiones | |||||||
| L | D | D1 | D2 | b | Z-d | H | D0 | |
| Z41H-16C | ||||||||
| 15 | 130 | 95 | 65 | 45 | 14-2 | 4-Φ14 | 170 | 120 |
| 20 | 150 | 105 | 75 | 55 | 14-2 | 4-Φ14 | 190 | 140 |
| 25 | 160 | 115 | 85 | 65 | 14-2 | 4-Φ14 | 205 | 160 |
| 32 | 180 | 135 | 100 | 78 | 16-2 | 4-Φ18 | 270 | 180 |
| 40 | 200 | 145 | 110 | 85 | 16-3 | 4-Φ18 | 310 | 200 |
| 50 | 250 | 160 | 125 | 100 | 16-3 | 4-Φ18 | 358 | 240 |
| 65 | 265 | 180 | 145 | 120 | 18-3 | 4-Φ18 | 373 | 240 |
| 80 | 280 | 195 | 160 | 135 | 20-3 | 8-Φ18 | 435 | 280 |
| 100 | 300 | 215 | 180 | 155 | 20-3 | 8-Φ18 | 500 | 300 |
| 125 | 325 | 245 | 210 | 185 | 22-3 | 8-Φ18 | 614 | 320 |
| 150 | 350 | 280 | 240 | 210 | 24-3 | 8-Φ23 | 674 | 360 |
| 200 | 400 | 335 | 295 | 265 | 26-3 | 12-Φ23 | 811 | 400 |
| 250 | 450 | 405 | 355 | 320 | 30-3 | 12-Φ25 | 969 | 450 |
| 300 | 500 | 460 | 410 | 375 | 30-3 | 12-Φ25 | 1145 | 580 |
| 350 | 550 | 520 | 470 | 435 | 34-4 | 16-Φ25 | 1280 | 640 |
| 400 | 600 | 580 | 525 | 485 | 36-4 | 16-Φ30 | 1452 | 640 |
| Z41H-25 | ||||||||
| 15 | 130 | 95 | 65 | 45 | 16-2 | 4-Φ14 | 170 | 120 |
| 20 | 150 | 105 | 75 | 55 | 16-2 | 4-Φ14 | 190 | 140 |
| 25 | 160 | 115 | 85 | 65 | 16-2 | 4-Φ14 | 205 | 160 |
| 32 | 180 | 135 | 100 | 78 | 18-2 | 4-Φ18 | 270 | 180 |
| 40 | 200 | 145 | 110 | 85 | 18-3 | 4-Φ18 | 310 | 200 |
| 50 | 250 | 160 | 125 | 100 | 20-3 | 4-Φ18 | 358 | 240 |
| 65 | 265 | 180 | 145 | 120 | 22-3 | 8-Φ18 | 373 | 240 |
| 80 | 280 | 195 | 160 | 135 | 22-3 | 8-Φ18 | 435 | 280 |
| 100 | 300 | 230 | 190 | 160 | 24-3 | 8-Φ23 | 500 | 300 |
| 125 | 325 | 270 | 220 | 188 | 28-3 | 8-Φ25 | 614 | 320 |
| 150 | 350 | 300 | 250 | 218 | 30-3 | 8-Φ25 | 674 | 360 |
| 200 | 400 | 360 | 310 | 278 | 34-3 | 12-Φ25 | 811 | 400 |
| 250 | 450 | 425 | 370 | 332 | 36-3 | 12-Φ30 | 969 | 450 |
| 300 | 500 | 485 | 430 | 390 | 40-4 | 16-Φ30 | 1145 | 580 |
| 350 | 550 | 550 | 490 | 448 | 44-4 | 16-Φ34 | 1280 | 640 |
| 400 | 600 | 610 | 550 | 505 | 48-4 | 16-Φ34 | 1452 | 640 |
