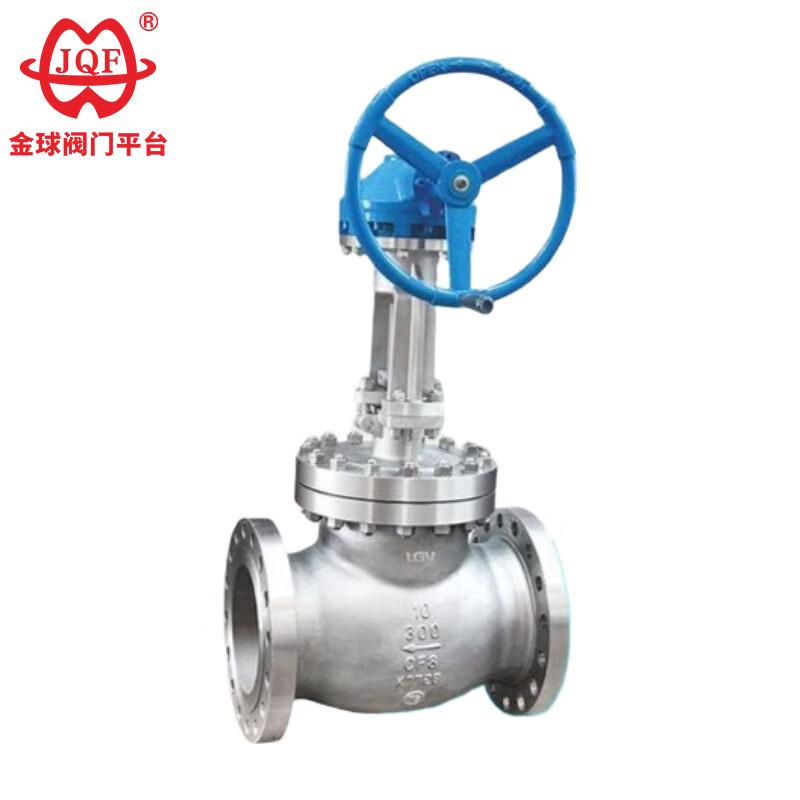

API Bevel Apparatus Globe Valve

Qualitas princeps API coneris valvae globi calces designatur et fabricatur per officinam JQF Valvae, opificem professionalem in Sinis, secundum signa Americana API. Sigillum eius conicum ac sedem reparabilem designans suum servitium extendit ad vitam, ad praestandum qualitatem superiorem et durabilitatem.

Mitte Inquisitionem

depictio producti

JQF Valve factory has been established for over 20 years, with business scope covering product design and R&D, mold manufacturing, casting and forging production, machining, performance testing and experimentation, marketing and service. Our durable API bevel gear globe valve is mainly used in pipeline systems to cut off, distribute, and change the direction of media flow. It features low fluid resistance, simple structure, and reliable sealing. Operated via a bevel gear transmission mechanism, it is easy to operate even when a large closing force is required, while the conical sealing surface provides erosion resistance.

Simple Structure 1.
The API Bevel globulus globulus calces notat simplicem designationem, faciens commodam et efficacem ad fabricandum et conservandum.
2. Responsio celeri
Valvae globi calces API Bevel brevem ictum laborantem habet, inde in apertura et occlusione valde celeriter.
3. Dura SIGNATIO
Valvae globi API Bevel calces altam obsignationem perficientur, minimam frictionalem resistentiam, et vitam longam servitutis praebet.

Exsequendam signa

Design Standard BS1873 JIS B2071-2081
Structura longitudinis ANSI B16.10, JISB2002
Flanges ANSI B16.5, JIS B2212-2214
Butt end size ANSI B16.25
Inspectio et Probatio API598, JIS B2003
Transmissio manualis, electrica, revellere calces

Curabitur laoreet condimentum

exemplar		J41H-150LB～2500LB	J41Y-150LB～2500LB	J41W-150LB～2500LB
Opus pressura-genus		150LB～2500LB
propriis caliditas.		≤425		≤150
Idonea media		Aqua, vapor, oleum		Debilis mordax medium
materia	Corpus, bonnet	Carbon chalybe		Chrome nickel-titanium immaculatum steel
	Valvae caulis	Chrome immaculatam ferro		Chrome nickel-titanium immaculatum steel
	Superficiem signantes	Surfacing ferrum-fundatur alloys	Hardfacing offensionis	Corpus materiale
	filler	Asbesto graphita, graphita flexibilis, PTFE

Praecipua figura et nexus dimensiones

DN	L	D	D1	D2	b	Z-Φd	H	D0
150Lb
15	108	90	60.5	35	10	4-15	241	125
20	117	100	70	43	11	4-15	241	125
25	127	110	79.5	51	12	4-15	242	125
32	140	120	89	63	13	4-15	280	160
40	165	130	98.5	73	15	4-15	286	160
50	203	150	120.5	92	16	4-19	368	200
65	216	180	139.5	105	18	4-19	387	200
80	241	190	152.5	127	19	4-19	411	250
100	292	230	190.5	157	24	8-19	454	250
125	356	255	216	186	24	8-22	455	355
150	406	280	241.5	216	26	8-22	541	355
200	495	345	298.5	270	29	8-22	651	450
250	622	405	362	324	31	12-25	800	450
300	698	485	432	381	32	12-25	1231	500
350	787	535	476.5	413	35	12-29	1450	600
400	914	595	534.5	470	37	16-29	1645	600
450	-	635	577.5	533	40	16-32	-	610
300Lb
15	152	95	66.5	35	15	4-15	241	125
20	178	120	82.5	43	16	4-19	241	125
25	203	125	89	51	18	4-19	283	160
32	216	135	98.5	63	19	4-19	320	200
40	229	155	114.3	73	21	4-22	322	200
50	267	165	127	92	23	8-19	399	200
65	292	190	149	105	26	8-22	438	250
80	318	210	168.5	127	29	8-22	464	280
100	356	255	200	157	32	8-22	565	355
125	400	280	235	186	35	8-22	614	400
150	444	320	270	216	37	12-22	717	450
200	559	380	330	270	42	12-25	930	500
250	622	445	387.5	324	47.7	16-29	1012	450
300	711	520	451	381	50.8	16-32	1231	500
350	762	585	514.5	413	54	20-32	1450	600
400	864	650	571.5	470	57.2	20-35	1645	600
600Lb
15	165	95	66.5	35	22	4-15	100	156
20	190	120	82.5	43	23	4-19	100	161
25	216	125	89	51	25	4-19	125	187
32	229	135	98.5	63	28	4-19	160	214
40	241	155	114.3	73	30	4-22	160	252
50	292	165	127	92	33	8-22	180	430
65	330	190	149	100	36	8-22	250	480
80	356	210	168	127	39	8-22	250	530
100	432	275	216	157	45	8-25	350	650
125	508	330	266.5	186	52	8-29	350	750
150	559	355	292	216	55	12-29	450	850
200	660	420	349	270	63	12-32	500	1050
250	787	510	432	324	71	19-35	600	1257
300	838	560	489	381	74	20-35	680	1468
350	889	605	527	413	77	20-38	760	1623
400	991	685	603	470	84	20-41	760	1816

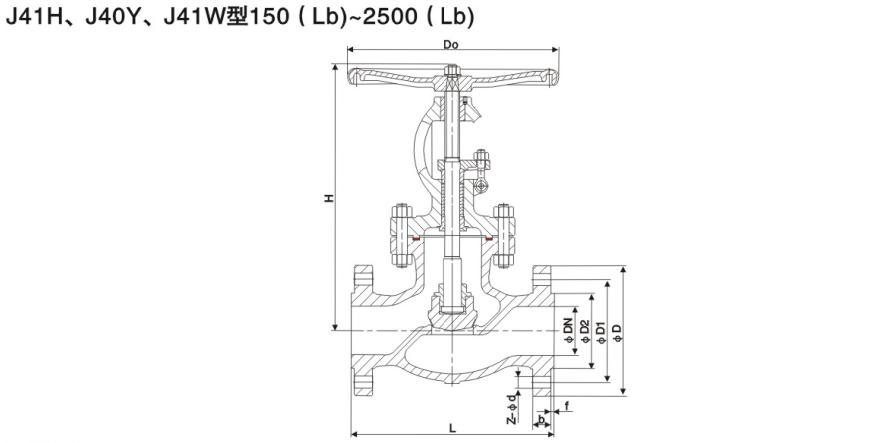

Structura pictura
