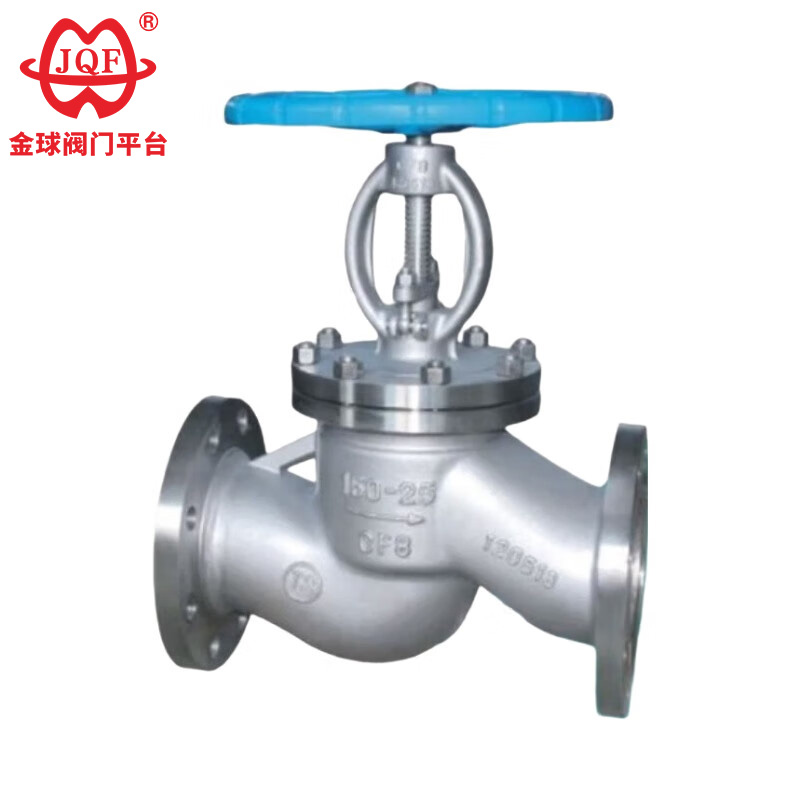

Valvae JQF valvae plenae processuum fabricandi officinas integrant investigationis scientificae, designationis, productionis, venditionis et servitii post venditionesque. Nostra princeps qualitas incorrupta globorum globorum incorrupta valva est valva tuta specialiter destinata ad imperium instrumentorum instrumentorum sicut ammonia et gas ammoniaci clausa. Is features stabilis signandi effectus, fortis corrosio resistentia, et operatio facilis. Materiae corrosionis repugnantis ut chalybis immaculatae, apta est industriae chemicae, solvenda problemata corrosionis resistentiae pauperum et faciles lacus valvularum ordinariarum. Potest etiam ad regulandum fluxus adhiberi. Nostram productionem et operandi administrationem instituimus secundum GB/T19001-2000-ISO9001: 2000 signa qualitatis systematis, cuius principium "manducandi summus qualitas products". Progressus internationales lineas et apparatum productionis continenter introducimus, et continuos novos fructus evolutionis ad emptorem necessarios explicamus. Futura spectantes, te praebere servitiis comprehensivis per interrete et interactive communicationem.
1. Stricta lectio materiam efficit qualitatem.
2. Immaculata chalybs plectrum infligitur globo, obsistens, corrosio repugnans, pressionis altae repugnans, et iracunde renitens, longa vita serviens.
3. Flexibile est institutionem, facilem ad disassemble, et notam aptam manus rotationis.
4. Immaculata chalybea valvae globi infligitur, est IMPERVIUS et dustproof, cum rationabili structura, perfecta consilio, et praestantia obsignatione perficiendi.
5. Globus valvae immaculatae chalybis inflante, maxime adhibita est ammonia, cibus gas, et media gaseosa sicut nitrogenium et hydrogenium.
Design specifications: GB/T 12235
Structura longitudinis: GB / T 12221
Connexio Linga: JB/T 79
Test et inspectio: JB / T 9002
Product Lepidium sativum: GB / T 12220
Delivery specification: JB / T 7928
| exemplar | J41H-16C～160C | J41Y-16C～160C | J41W-16P～160P | |
| Opus pressura（MPa | 1.6～16.0 | |||
| propriis caliditas. | ≤425 | ≤150 | ||
| Idonea media | Aqua, vapor, oleum | Debilis mordax medium | ||
| materia | Corpus, bonnet | Carbon chalybe | Chrome nickel-titanium immaculatum steel | |
| Valvae caulis | Chrome immaculatam ferro | Chrome nickel-titanium immaculatum steel | ||
| Superficiem signantes | Surfacing ferrum-fundatur alloys | Hardfacing offensionis | Corpus materiale | |
| filler | Asbesto graphita, graphita flexibilis, PTFE | |||

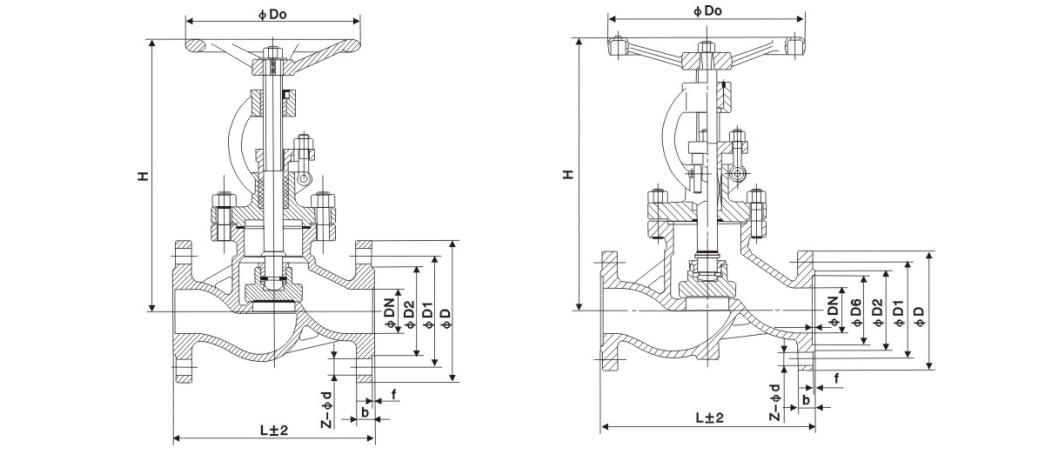

| Nominal diameter | Praecipuae dimensiones et nexus dimensiones | |||||||
| L | D | D1 | D2 | b | Z-d | H | D0 | |
| J41H-16C | ||||||||
| 15 | 130 | 95 | 65 | 45 | 14-2 | 4-Φ14 | 170 | 120 |
| 20 | 150 | 105 | 75 | 55 | 14-2 | 4-Φ14 | 190 | 140 |
| 25 | 160 | 115 | 85 | 65 | 14-2 | 4-Φ14 | 205 | 160 |
| 32 | 180 | 135 | 100 | 78 | 16-2 | 4-Φ18 | 270 | 180 |
| 40 | 200 | 145 | 110 | 85 | 16-3 | 4-Φ18 | 310 | 200 |
| 50 | 230 | 160 | 125 | 100 | 16-3 | 4-Φ18 | 358 | 240 |
| 65 | 290 | 180 | 145 | 120 | 18-3 | 4-Φ18 | 373 | 240 |
| 80 | 310 | 195 | 160 | 135 | 20-3 | 8-Φ18 | 435 | 280 |
| 100 | 350 | 215 | 180 | 155 | 20-3 | 8-Φ18 | 500 | 300 |
| 125 | 400 | 245 | 210 | 185 | 22-3 | 8-Φ18 | 614 | 320 |
| 150 | 480 | 280 | 240 | 210 | 24-3 | 8-Φ23 | 674 | 360 |
| 200 | 600 | 335 | 295 | 265 | 26-3 | 12-Φ23 | 811 | 400 |
| 250 | 650 | 405 | 355 | 320 | 30-3 | 12-Φ25 | 969 | 450 |
| 300 | 750 | 460 | 410 | 375 | 30-3 | 12-Φ25 | 1145 | 580 |
| 350 | 850 | 520 | 470 | 435 | 34-4 | 16-Φ25 | 1280 | 640 |
| 400 | 980 | 580 | 525 | 485 | 36-4 | 16-Φ30 | 1452 | 640 |
| J41H-25C | ||||||||
| 15 | 130 | 95 | 65 | 45 | 16-2 | 4-Φ14 | 170 | 120 |
| 20 | 150 | 105 | 75 | 55 | 16-2 | 4-Φ14 | 190 | 140 |
| 25 | 160 | 115 | 85 | 65 | 16-2 | 4-Φ14 | 205 | 160 |
| 32 | 180 | 135 | 100 | 78 | 18-2 | 4-Φ18 | 270 | 180 |
| 40 | 200 | 145 | 110 | 85 | 18-3 | 4-Φ18 | 310 | 200 |
| 50 | 230 | 160 | 125 | 100 | 20-3 | 4-Φ18 | 358 | 240 |
| 65 | 290 | 180 | 145 | 120 | 22-3 | 8-Φ18 | 373 | 240 |
| 80 | 310 | 195 | 160 | 135 | 22-3 | 8-Φ18 | 435 | 280 |
| 100 | 350 | 230 | 190 | 160 | 24-3 | 8-Φ23 | 500 | 300 |
| 125 | 400 | 270 | 220 | 188 | 28-3 | 8-Φ25 | 614 | 320 |
| 150 | 480 | 300 | 250 | 218 | 30-3 | 8-Φ25 | 674 | 360 |
| 200 | 600 | 360 | 310 | 278 | 34-3 | 12-Φ25 | 811 | 400 |
| 250 | 650 | 425 | 370 | 332 | 36-3 | 12-Φ30 | 969 | 450 |
| 300 | 750 | 485 | 430 | 390 | 40-4 | 16-Φ30 | 1145 | 580 |
| 350 | 850 | 550 | 490 | 448 | 44-4 | 16-Φ34 | 1280 | 640 |
| 400 | 980 | 610 | 550 | 505 | 48-4 | 16-Φ34 | 1452 | 640 |
