Globe Valve Antibiotic

Guangdong Jinqiu Valvae Technologiae Co, Ltd est valvae Sinica fabrica et elit. Multos annos in investigationibus, evolutionibus, productionibus et venditionibus valvularum et tibiarum et congruorum valvularum relatarum notavimus. Nostrae valvae antibioticae globi lineamenta gasketes reponendas, faciles disconventus, et humiles sustentationes gratuita sunt. Etiam validas proprietates bactericidas et detoxantes iactat, impedimentum productum contagione bacteria. Producti nostri praestantes commoda pretia praebent ac plurimas Sinas operiunt, sicut Europam, Asiam Australem et Orientem Medium. Expectamus ad longum tempus socium in Sinis fieri.

Mitte Inquisitionem

depictio producti

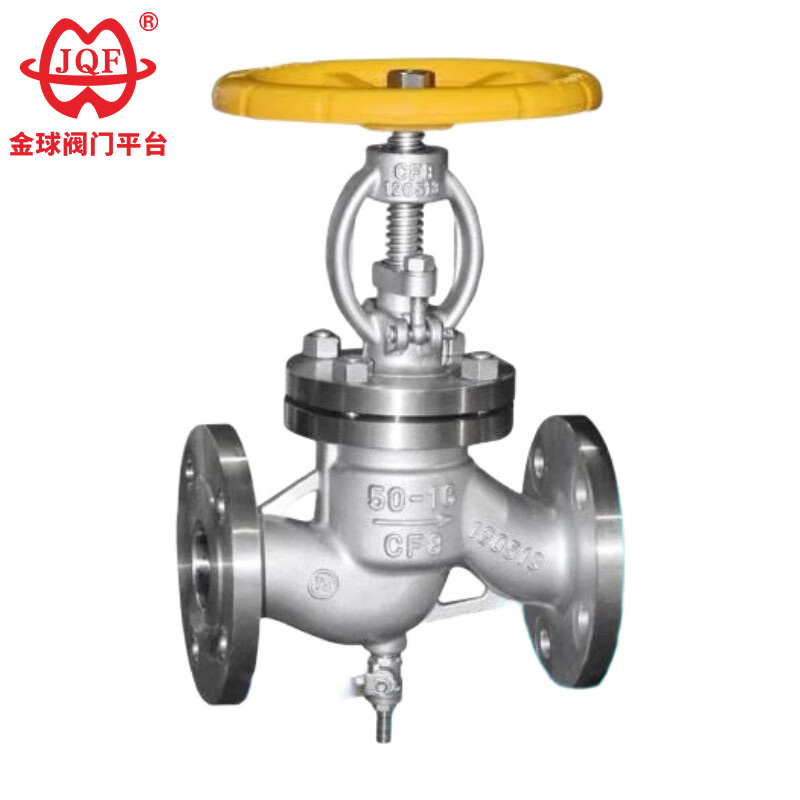

The quality antibiotic globe valve manufactured by JQF Valve factory is mainly used in fields such as biological fermentation, pharmaceutical and beer fermentation, amino acid fermentation, biopesticide fermentation, biofertilizer fermentation, various antibiotic fermentation, biological, biochemical, chemical, pharmaceutical materials, water, steam, and cold control. The bottom hole can be opened according to customer needs. It is resistant to high temperature, has a long service life, no dead angles, and zero leakage.

1) Valvae antibioticae globulus rationabiliter designatus nullis angulis mortuis, efficaciter minuens ratem infectionis in productione medicamentorum, et certam certitudinem praebet pro productione antibiotica aseptico;
2) Valvae antibioticae globulus accuratam structuram et praestantem obsignationem effectus habet, ne lacus, profluvium, madens et regurgitatio, salvis energiae consumptio et condiciones ad civilitatem productionem in officina prospera praebens;
3) Valvula antibiotica globus ex certis materiis, subtiliter fabricatis et durabilibus, constat. Sigilla fiunt ex polytetrafluoroethylene, quae fortiter corrosionem resistit. In iude maioribus, solum gasket indiget reparari, disassemble et sustentationem expedire, sumptibus reducere et efficientiam oeconomicam augere.

Design and fabrica of standards

Consilium et fabricare: GB / T12235
Magnitudo Flanga: JB / T79.1
Structura longitudinis: GB / T12221
Inspectio et probatio: JB / T9092

Praecipua perficientur specifications

Pressura nominatim	1.6 MPa
test pressura	fortitudo test	2.4 MPa
	sigillum test	1.76 MPa
	sigillum test	1.76 MPa
	Gas sigillum test	0.6 MPa
Maxime opus temperatus	120℃
Idonea media	Aqua, vapor, cibus et cetera

Praecipua figura et nexus dimensiones

Nominal diameter	Praecipuae dimensiones et nexus dimensiones
Nominal diameter	L	D	D1	D2	b	Z-d	H	D0
J41F-16C
15	130	95	65	45	14-2	4-Φ14	170	120
20	150	105	75	55	14-2	4-Φ14	190	140
25	160	115	85	65	14-2	4-Φ14	205	160
32	180	135	100	78	16-2	4-Φ18	270	180
40	200	145	110	85	16-3	4-Φ18	310	200
50	230	160	125	100	16-3	4-Φ18	358	240
65	290	180	145	120	18-3	4-Φ18	373	240
80	310	195	160	135	20-3	8-Φ18	435	280
100	350	215	180	155	20-3	8-Φ18	500	300
125	400	245	210	185	22-3	8-Φ18	614	320
150	480	280	240	210	24-3	8-Φ23	674	360
200	600	335	295	265	26-3	12-Φ23	811	400
250	650	405	355	320	30-3	12-Φ25	969	450
300	750	460	410	375	30-3	12-Φ25	1145	580
350	850	520	470	435	34-4	16-Φ25	1280	640
400	980	580	525	485	36-4	16-Φ30	1452	640
J41F-25C
15	130	95	65	45	16-2	4-Φ14	170	120
20	150	105	75	55	16-2	4-Φ14	190	140
25	160	115	85	65	16-2	4-Φ14	205	160
32	180	135	100	78	18-2	4-Φ18	270	180
40	200	145	110	85	18-3	4-Φ18	310	200
50	230	160	125	100	20-3	4-Φ18	358	240
65	290	180	145	120	22-3	8-Φ18	373	240
80	310	195	160	135	22-3	8-Φ18	435	280
100	350	230	190	160	24-3	8-Φ23	500	300
125	400	270	220	188	28-3	8-Φ25	614	320
150	480	300	250	218	30-3	8-Φ25	674	360
200	600	360	310	278	34-3	12-Φ25	811	400
250	650	425	370	332	36-3	12-Φ30	969	450
300	750	485	430	390	40-4	16-Φ30	1145	580
350	850	550	490	448	44-4	16-Φ34	1280	640
400	980	610	550	505	48-4	16-Φ34	1452	640
