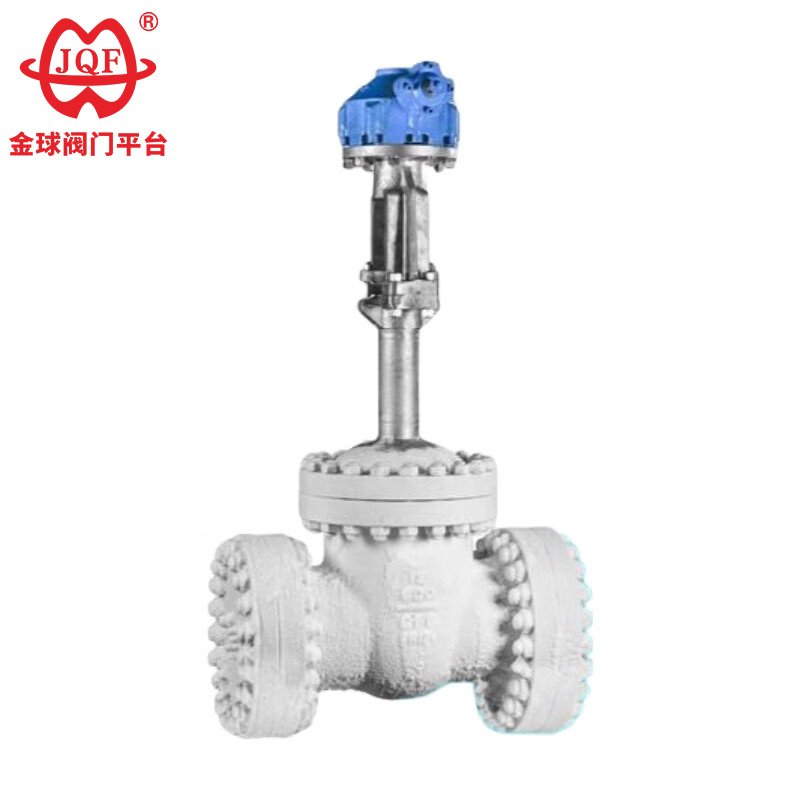

Stainless Steel Cryogenic Gate Valve

Valvae JQF opificem valvae cum viginti annis in Sinis est, praesertim valvulae pilae, valvulae portae, valvulae globi, valvulae papilionis, et valvulae solenoides. Qualitas nostra summus valvae portae cryogenicae chalybis immaculatae specialiter destinatur ad extremas conditiones operativas cum mediis temperaturis infra -46°C. Apta est instrumentis cryogenicis ut methanum, gasi naturale liquefactum, hexene, dioxidum carbonii, liquidum ammoniaci, oxygenii liquidi, nitrogenii liquidi et hydrogenii liquidi.

Mitte Inquisitionem

depictio producti

JQF Valve as a professional manufacturer, is dedicated to providing you with durable stainless steel cryogenic gate valves. These are not just simple cryogenic valves, but specialized equipment with special material selection, structural design, and manufacturing processes. They are widely used in the storage, transportation, and handling systems of cryogenic media such as liquefied natural gas, liquid nitrogen, liquid argon, and liquid carbon dioxide, ensuring reliable opening and closing and tight sealing under cryogenic conditions.

Morbi laoreet euismod

exemplar		DZ40Y-16	DZ40Y-25
Opus pressura（MPa)		1.6	2.5
propriis caliditas.		LC3≥-101，LCB≥-46，LCC≥-46,1Cr18Ni9Ti≥-196
materia	filler	Baptista tetrafluoroethylene asbesto funiculus
	Handwheel	QT450-10
	Caule nut	ZCuA110Fe3
	Valvae caulis	1Cr18Ni9Ti
	Gasket	Humilis temperatus asbesto

Features

1. Pressura cavitas Neutralisation: Pressura machinata librans orificium integratum in valvae limbi faciem ferri immaculati valvae portae cryogenicae pressionis differentialium active miremur, prohibens instrumenta noxia ne cumulantur intra cavitatis valvae.
2. Thermodynamically Optimized Cover: Operculum altitudo dynamice calculata fundatur in profile temperatura operante ad integritatem compressivam retinendi caulis stipendii per totum cyclum temperatum.
3. Calibration Tribological Material: Praecisa specifications anuli sarcinae et gasket materiae firmandi stabilitatem chemicam super determinatis range operandis temperatura.
4. Metallurgica euismod Guarantee: De chemica compositione et crystalli structura partium stricte convalidatur ut incursum duritiem et ductilem per amplam temperiem complectatur.
5. Architectura universalis instrumenti: Varietas figurarum vexillum flange et morphologiam signandi optiones valvae portae cryogenicae ferro immaculatae obviam integrationem limbis globalis requisitis.

Praecipua figura et nexus dimensiones

Nominal diameter	Praecipuae dimensiones et nexus dimensiones
Nominal diameter	L	D	D1	D2	b	Z-d	H	D0
Z40Y-16L
20	150	105	75	55	14-2	4-Φ14	320	140
25	160	115	85	65	14-2	4-Φ14	350	160
32	180	135	100	78	16-2	4-Φ18	385	180
40	200	145	110	85	16-3	4-Φ18	420	200
50	250	160	125	100	16-3	4-Φ18	540	240
65	265	180	145	120	18-3	4-Φ18	610	240
80	280	195	160	135	20-3	8-Φ18	690	280
100	300	215	180	155	20-3	8-Φ18	780	300
125	325	245	210	185	22-3	8-Φ18	930	320
150	350	280	240	210	24-3	8-Φ23	980	360
200	400	335	295	265	26-3	12-Φ23	1180	400
250	450	405	355	320	30-3	12-Φ25	1390	450
300	500	460	410	375	30-3	12-Φ25	1620	580
350	550	520	470	435	34-4	16-Φ25	1810	640
400	600	580	525	485	36-4	16-Φ30	1970	640
Z40Y-25
20	150	105	75	55	16-2	4-Φ14	320	140
25	160	115	85	65	16-2	4-Φ14	350	160
32	180	135	100	78	18-2	4-Φ18	385	180
40	200	145	110	85	18-3	4-Φ18	420	200
50	250	160	125	100	20-3	4-Φ18	540	240
65	265	180	145	120	22-3	8-Φ18	610	240
80	280	195	160	135	22-3	8-Φ18	690	280
100	300	230	190	160	24-3	8-Φ23	780	300
125	325	270	220	188	28-3	8-Φ25	930	320
150	350	300	250	218	30-3	8-Φ25	980	360
200	400	360	310	278	34-3	12-Φ25	1180	400
250	450	425	370	332	36-3	12-Φ30	1390	450
300	500	485	430	390	40-4	16-Φ30	1620	580
350	550	550	490	448	44-4	16-Φ34	1810	640
400	600	610	550	505	48-4	16-Φ34	1970	640

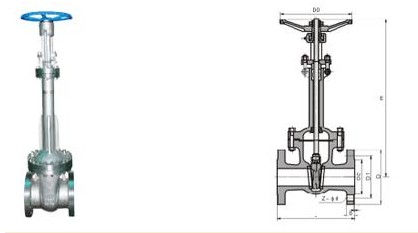

Structura pictura

Omnes textus, notitia et picturae in hoc articulo solum referendae sunt. Si opus est videre plures fructus effectus, structuram magnitudinem, pretium et alia singularia. Contact us sis.
