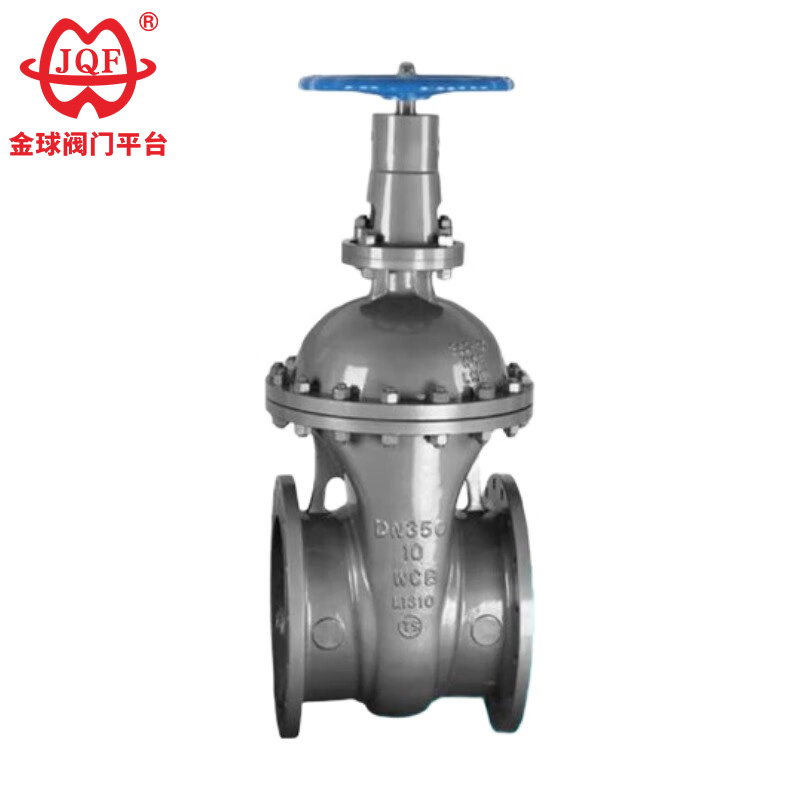

Castrum Obscurum Rod Gate Valve

JQF Valvae officinam altae qualitatem Cast Steel Dark Rod Porta Valve est valvae portae ferreae ubi caulis nucis in vertice portae directe ascendit, et caulis solum sine axiali obsessione in aperiendo et claudendo circumagitur. Hoc consilium aptissimum facit applicationes ad spatium institutionis limitatae.

Mitte Inquisitionem

depictio producti

The Z45H-10C and Z45H-16C Cast Steel Dark Rod Gate Valve in stock manufactured by JQF Valve, a professional valve manufacturer in China, are manual, flange-connected, non-stick wedge-shaped rigid single-plate valves with 13Cr stainless steel seat sealing surface material. The nominal pressure is PN10～PN16, and the valve body material is WCB, which is of high quality and durable.

1. Compact Structure, Spatium Instrumentum Parvum: Durabile Castrum Ferro Rod Porta Valvae Obscurae aptae applicationibus ad spatium constrictis.
2. Maximum Cost-Efficiens: Minores valvulae diametri, Ferro Obscuri Rod Gate Valvae Castrum structuram relative simplicem habet, potentia consequens in sumptibus fabricandis inferioribus.
3. Altitudo Environmentalis liberata: Provectus Provectus Ferro Obscurus Rod Porta Valvae non occurret impedimenta supra caput sicut caulis valvae oritur.

Curabitur laoreet condimentum

Cum aliis productis valvae comparatis, Ferro Obscurum Rod Gate Valvae Mittite ab caliditate et alta pressura, et a singulari propriae signationis consilio. Altior impressioni, certius obsignatio. Ob notas agendi et technicas, condiciones operationes speciales formant productum formationem quae ab aliis productis substitui non potest.

Design signa

exemplar	PN	Opus pressura / MPa	propriis caliditas /	Idonea media
Z45H-10C	10	1.0	≤425	aqua
Z45H-16C	16	1.6	≤425	aqua

Praecipua materia

exemplar	materia
exemplar	Corpus, mitram, lamina valvae	Valvae caulis	Superficiem signantes	filler
Z45H-10C	WCB	Chrome immaculatam ferro	13Cr	Flexibile graphite
Z45H-16C	WCB	Chrome immaculatam ferro	13Cr	Flexibile graphite

Praecipua figura et nexus dimensiones

Nominal diameter	Praecipuae dimensiones et nexus dimensiones
Nominal diameter	L	D	D1	D2	Z-d	H
Z45H-10C
50	178	165	125	102	4-Φ19	285
65	190	185	145	122	4-Φ19	305
80	203	200	160	138	8-Φ19	330
100	229	220	180	158	8-Φ19	405
125	254	250	210	188	8-Φ19	460
150	267	285	240	212	8-Φ23	506
200	292	340	295	268	8-Φ23	610
250	330	395	350	320	12-Φ23	730
300	356	445	400	370	12-Φ23	950
Z45H-16C
50	178	165	125	102	4-Φ19	285
65	190	185	145	122	4-Φ19	305
80	203	200	160	138	8-Φ19	330
100	229	220	180	158	8-Φ19	405
125	254	250	210	188	8-Φ19	460
150	267	285	240	212	8-Φ23	506
200	292	340	295	268	12-Φ23	610
250	330	395	350	320	12-Φ28	730
300	356	445	400	370	12-Φ28	950
350	381	520	470	438	16-Φ28	1125
400	406	582	525	490	16-Φ31	1200

Hot Tags: Castrum Obscurum Rod Gate Valvae, China, Mos, Qualitas, Dura, Provecta, Manufacturer, Supplier, Factory, in Stock
