Porta Electrical Valve

JQF Valvae officinas non solum varias valvulas obolos fabricat, sed etiam valvulas designat et secundum ad mos requisita producit. Qualitas nostra portae electricalis Valvae est valvae automatae machinae quae actuatorem electricum cum portae valvae corpore iuncta fine iuncta integrat. Imperium remotum cognoscit, aperturam et occlusionem rapidam, valvularum administrationem automatam. Maxime convenit ut summus pressus, summus temperatus, summus periculo, vel difficilis ad accessum operandi condiciones et est clavis instrumenti pro moderno moderamine industrialis pipeline automation.

Mitte Inquisitionem

depictio producti

JQF Valve's high quality Electrical Gate Valve is widely used in petrochemical, thermal power plant, and other industries for connecting or shutting off medium pipelines, including those for petroleum products and steam. It is a high-quality, durable device.

Executive Standard

Design specifications: GB/T 12234
Structura longitudinis: GB / T 12221
Connecting flange: JB / T 79.1
Test et inspectio: JB / T 9092
Pressura - Temperature: GB / T 9131
Product Lepidium sativum: GB / T 12220

Valvulae portae electricae aptae sunt applicationibus quae aperitionem integram vel clausuram completam requirunt. In summa, in permutationibus / tibiarum typice instituuntur ut valvulae solitariae, nec aptae ad imperium fluunt. Cum valvae plene apertae sunt, transitus omnino apertus est, sino medium ut sine pressione nulla fere iactura percurrat. Ideo sunt ideales systemata quae prioritize humilitatis pressionis amissio et iter patens fluunt requirunt.

Features

1. Foedus compages, ratio rationabilis, Valvae bonae rigiditas, Levis fluit semita, Et humilis fluit coefficiens.
2. Obsignandi superficies fiunt ferro immaculato et duris materiis admixtis, ad vitam longam praestandam.
3. The Electrical Gate Valve uses flexible graphite packing, ensuring reliable sealing and easy, flexible operation.
4. Porta Electrical Valvae manually, pneumatice, electrically aut calces agi potest.
5. Tres optiones structurae praesto sunt: cuneus flexibilis porta una, cuneus rigidus porta una, porta duplex.

Morbi laoreet euismod

Nominal pressurePN（MPa)	casus	test pressura（MPa)		signatus
Nominal pressurePN（MPa)	casus	Signati (liquida)	Sigillum (gas)	signatus
1.6	2.4	1.8	0.6	1.8
2.5	3.8	2.8	0.6	2.8
4.0	6.0	4.4	0.6	4.4
6.4	9.6	7.0	0.6	7.0
10.0	15.0	11.0	0.6	11.0
16.0	24.0	18.0	0.6	18.0

Idoneum medium et applicabile temperatus

Testa materia	Idonea media	Locus temperatus (℃)
Carbon chalybe (C type)	Aqua, vapor, oleum	≤425
Chromium nickel titanium steel (P type)	Acida nitrica	≤200
Chrome nickel molybdenum titanium steel (R type)	Acidum aceticum	≤200
Chrome-molybdenum chalybeum (type I)	Aqua, vapor, oleum	≤550

Praecipua materia

Corpus, bonnet	Valvae lamina, sedes	Valvae caulis	Caule nut	filler	Handwheel
Carbon chalybe	Summus qualitas carbonis chalybe + carbida vel immaculata chalybe	Chrome immaculatam ferro	aluminium aereum	Graphite asbesto stipare	ferrum oboediens
Chromium nickel titanium steel	Diver immaculatus, immaculatus ferro + coagmentatum carbide	Chrome nickel-titanium immaculatum steel	aluminium aereum	Teflon	ferrum oboediens
Chromium nickel molybdenum titanium steel	Diver immaculatus, immaculatus ferro + coagmentatum carbide	Chrome nickel-titanium immaculatum steel	aluminium aereum	Teflon	ferrum oboediens
Chrome-molybdenum chalybeum	Admisce ferro + Carbide	Chrome-molybdenum chalybeum	aluminium aereum	Asbesto flexibile	ferrum oboediens

Praecipua figura et nexus dimensiones

Nominal diameter	Praecipuae dimensiones et nexus dimensiones
Nominal diameter	L	D	D1	D2	b	Z-d	H	D0
Z41H-16
15	130	95	65	45	14-2	4-Φ14	170	120
20	150	105	75	55	14-2	4-Φ14	190	140
25	160	115	85	65	14-2	4-Φ14	205	160
32	180	135	100	78	16-2	4-Φ18	270	180
40	200	145	110	85	16-3	4-Φ18	310	200
50	250	160	125	100	16-3	4-Φ18	358	240
65	265	180	145	120	18-3	4-Φ18	373	240
80	280	195	160	135	20-3	8-Φ18	435	280
100	300	215	180	155	20-3	8-Φ18	500	300
125	325	245	210	185	22-3	8-Φ18	614	320
150	350	280	240	210	24-3	8-Φ23	674	360
200	400	335	295	265	26-3	12-Φ23	811	400
250	450	405	355	320	30-3	12-Φ25	969	450
300	500	460	410	375	30-3	12-Φ25	1145	580
350	550	520	470	435	34-4	16-Φ25	1280	640
400	600	580	525	485	36-4	16-Φ30	1452	640
Z41H-25
15	130	95	65	45	16-2	4-Φ14	170	120
20	150	105	75	55	16-2	4-Φ14	190	140
25	160	115	85	65	16-2	4-Φ14	205	160
32	180	135	100	78	18-2	4-Φ18	270	180
40	200	145	110	85	18-3	4-Φ18	310	200
50	250	160	125	100	20-3	4-Φ18	358	240
65	265	180	145	120	22-3	8-Φ18	373	240
80	280	195	160	135	22-3	8-Φ18	435	280
100	300	230	190	160	24-3	8-Φ23	500	300
125	325	270	220	188	28-3	8-Φ25	614	320
150	350	300	250	218	30-3	8-Φ25	674	360
200	400	360	310	278	34-3	12-Φ25	811	400
250	450	425	370	332	36-3	12-Φ30	969	450
300	500	485	430	390	40-4	16-Φ30	1145	580
350	550	550	490	448	44-4	16-Φ34	1280	640
400	600	610	550	505	48-4	16-Φ34	1452	640

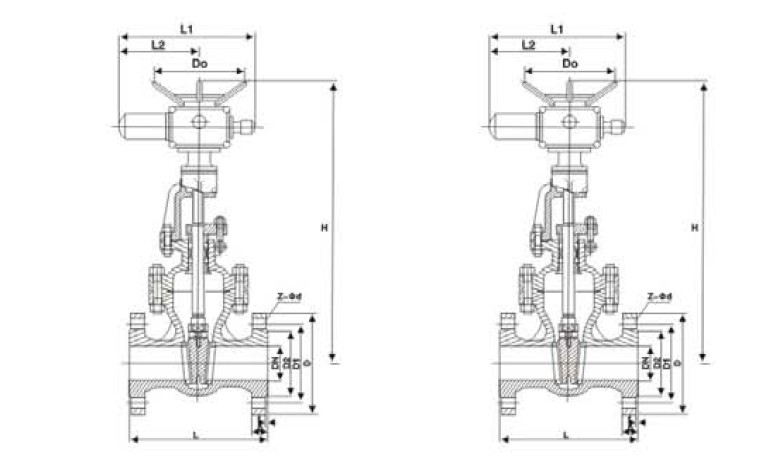

Structura pictura
