Z540H, Z540Y, Z540W typus PN16 ~ PN160 calces ferri revellere cuneum portae valvae a Lianggu valvae productae productae valvae Co., Ltd. Revela calces coegi, nexus LABIUM, porta cunei-elastica. Sedes obsignandi materia superficiei mixturae superficies est (Z540H-16C~ 160, Z540Y-16C~ 160, Z540Y-16I~ 160I, Z540Y-16P~ 160P, Z540Y-16R~ 160R), immaculatum ferrum (Z540W-16P~ 160P, Z540W-16R~ 160R), pressus nominalis PN16~ PN160. Materia corporis valvae est chalybs carbonis (Z540H-16C~ 160, Z540Y-16C~ 160), Chrome molybdaeni mixturae chalybis (Z540Y-16I~ 160I), chalybis immaculatus (Z540W-16P~ 160P, Z540Y-16P~ 160P, Z540W-16R~ 160R, Z540Y- 16R~ 160R) portae valvae.
1. Customized Bevel phaleris portae valvulae pluma signa provectae, signatio certa, effectus superior, et species speciosa.
2. Lamellae valvae cuneatae compages pro flexibili commutatione.
3. Patella plectrum et sedes Stellite stannum iuncta sunt.
4. Valvae caulis exstingui et temperans curationem patitur ad corrosionem augendam et resistentiam adhibendo.
5. Multiplicia fistulae signa et signa superficiei signandi flange signandi praesto sunt.
6. High quality Bevel valvulae portae calces praesto sunt in variis materiis corporis ad diversitatem pressionis, temperationis et instrumentorum condiciones congruentes.
| exemplar | PN | Opus pressura / MPa | Operans temperatus / | Idonea media |
| Z540H-16C-160 | 16-160 | 1.6-16.0 | ≤425 | Aqua, vapor, oleum |
| Z540Y-16C-160 | 16-160 | 1.6-16.0 | ≤425 | Aqua, vapor, oleum |
| Z540H-16I-160 | 16-160 | 1.6-16.0 | ≤550 | Vapor, oleum |
| Z540W-16P-40P | 16-40 | 1.6-4.0 | ≤150 | Corrosivum instrumentorum |
| Z540Y-16P-160P | 16-160 | 1.6-16.0 | ≤150 | Corrosivum instrumentorum |
| Z540W-16R-40R | 16-40 | 1.6-4.0 | ≤150 | Corrosivum instrumentorum |
| Z540Y-16R-160R | 16-160 | 1.6-16.0 | ≤150 | Corrosivum instrumentorum |

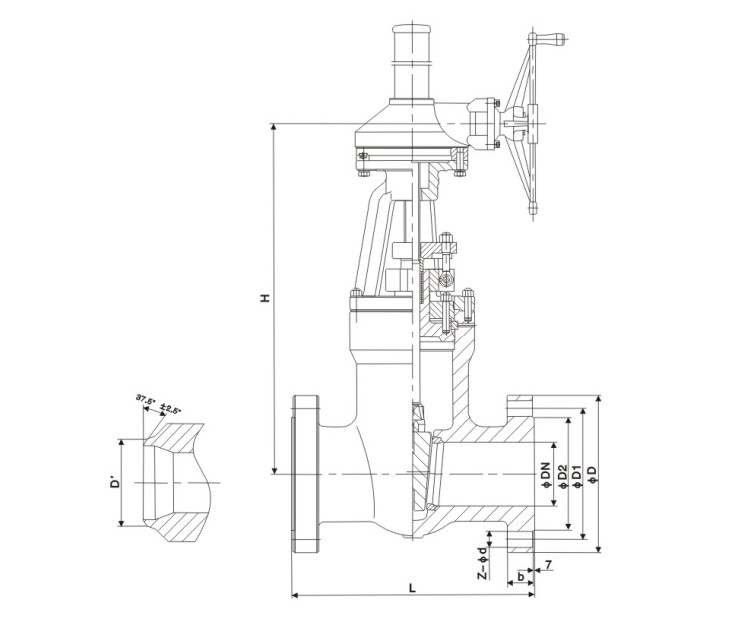

| Nominal diameter | Praecipuae dimensiones et nexus dimensiones | |||||||
| L | D | D1 | D2 | b | Z-d | H | ||
| Z540H-16C | ||||||||
| 200 | 400 | 335 | 295 | 265 | 26-3 | 12-Φ23 | 730 | |
| 250 | 450 | 405 | 355 | 320 | 30-3 | 12-Φ25 | 897 | |
| 300 | 500 | 460 | 410 | 375 | 30-3 | 12-Φ25 | 1032 | |
| 350 | 550 | 520 | 470 | 435 | 34-4 | 16-Φ25 | 1170 | |
| 400 | 600 | 580 | 525 | 485 | 36-4 | 16-Φ30 | 1330 | |
| 450 | 650 | 640 | 585 | 545 | 40-4 | 20-Φ30 | 1541 | |
| 500 | 700 | 705 | 650 | 608 | 44-4 | 20-Φ34 | 1676 | |
| 600 | 800 | 840 | 770 | 718 | 48-5 | 20-Φ36 | 1874 | |
| 700 | 900 | 910 | 840 | 788 | 50-5 | 24-Φ36 | 2083 | |
| 800 | 1000 | 1020 | 950 | 898 | 52-5 | 24-Φ41 | 2400 | |
| Z540H-25 | ||||||||
| 200 | 400 | 360 | 310 | 278 | 34-3 | 12-Φ25 | 730 | |
| 250 | 450 | 425 | 370 | 332 | 36-3 | 12-Φ30 | 897 | |
| 300 | 500 | 485 | 430 | 390 | 40-4 | 16-Φ30 | 1032 | |
| 350 | 550 | 550 | 490 | 448 | 44-4 | 16-Φ34 | 1170 | |
| 400 | 600 | 610 | 550 | 505 | 48-4 | 16-Φ34 | 1330 | |
| 450 | 650 | 660 | 600 | 555 | 50-4 | 20-Φ34 | 1541 | |
| 500 | 700 | 730 | 660 | 610 | 52-4 | 20-Φ36 | 1676 | |
| 600 | 800 | 840 | 770 | 718 | 56-5 | 20-Φ41 | 1874 | |
| 700 | 900 | 955 | 875 | 815 | 60-5 | 24-Φ42 | 2083 | |
| 800 | 1000 | 1070 | 990 | 930 | 64-5 | 24-Φ48 | 2400 | |
|
|
|
|
|
|
|
|
|
|
