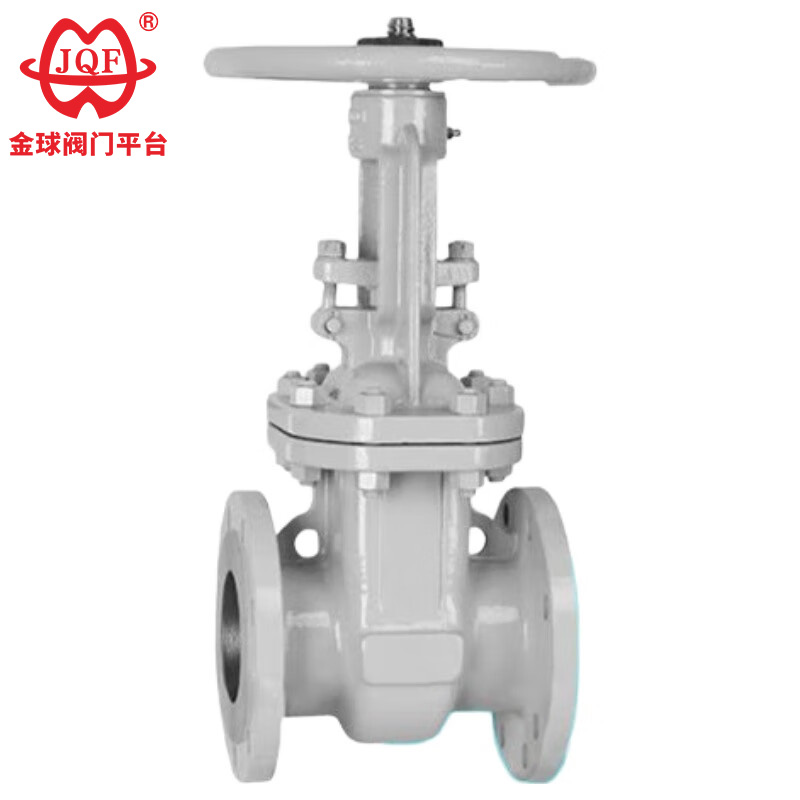

Portus Valvae Russian Standard

Valvae JQF valvae magnae fabricator in Sinis est, qui investigationem scientificam, progressionem, consilium, productionem, venditiones et ministerium integrant. Haec qualitas princeps Russian Portae Valvae Latin in stirpe valvae caulis non-orientis portae valvae ductilis facta est et instructa cum anulo iuvantis consi- stri ad certam signationem et firmitatem obtinendam. Structura eius compacta altam rigiditatem et constantiam praebet, dum consi- lium portae consi- deformatio impedit sub abnormis oneribus vel temperaturis. Plectrum volvendis gestus instruitur ad faciliorem operationem in majoribus magnitudinibus et subsidiis nativus materias et optiones sedes ad varias conditiones operandas.

Mitte Inquisitionem

depictio producti

The durable Russian Standard Gate Valve manufactured by JQF Valve is widely used in the inlet and outlet channels or media shut-off devices of oil and steam pipelines in petrochemical, thermal power and other industries. It has passed CE certification, is of high quality and durable, and ensures compliance with EU safety standards, guaranteeing market access compliance.

1. Spatium-Optimised Liquidum Edidit Architectura: Consilium valvae structurae optimized corporis valvae eximii rigoris et liquidae geometricae fluxus praebet, extenuando pressionis guttam.
2. Provectus Composite Obsignans Superficies: Portae Valvae Russicae Latin utitur technologia proprietaria metallurgica ad iunctiones corrosio-repugnantium cum matrice carbide tungsten componens, vitam eximie longam cycli attingens signa industriae longe superans.
3. Frictio-Freti Caulem Systematis Operantis: Anisotropica graphitica stipatio annulorum anulorum zephyro-lacagia sigillum obtinet dum actuationem claram, humilemque torquem actui facili et sine illabili praebens.
4. Multi-modus Actuationis Integration: Portae Valvae Russicae Compatibilitatem actuationem comprehensivam offert, incluso manu rotarum, actuatorum pneumaticorum, motorum electricorum, et calces planetarum reducentium, instruere universalem facultatem.
5. Configurable Valvae Disci Topologiae rostris: Tres figurae variae signantes: pressus adaptivus flexibilis porta una, porta alta rigida una, et portae duales parallelae bidirectionales.

Signa exsequendam

Design specifications: GB/T 12234
Structura longitudinis: GB / T 12221
Connecting flang: r0CT12815-08-I
Test et inspectio: JB / T 9092
Pressura - Temperature: GB / T 9131
Product Lepidium sativum: GB / T 12220

Morbi laoreet euismod

Nominal pressurePN（MPa)	casus	test pressura（MPa)		signatus
Nominal pressurePN（MPa)	casus	Signati (liquida)	Sigillum (gas)	signatus
1.6	2.4	1.8	0.6	1.8
2.5	3.8	2.8	0.6	2.8
4.0	6.0	4.4	0.6	4.4
6.4	9.6	7.0	0.6	7.0
10.0	15.0	11.0	0.6	11.0
16.0	24.0	18.0	0.6	18.0

Idoneum medium et applicabile temperatus

Testa materia	Idonea media	Locus temperatus (℃)
Carbon chalybe (C type)	Aqua, vapor, oleum	≤425
Chromium nickel titanium steel (P type)	Acida nitrica	≤200
Chrome nickel molybdenum titanium steel (R type)	Acidum aceticum	≤200
Chrome-molybdenum chalybeum (type I)	Aqua, vapor, oleum	≤550

Praecipua materia

Corpus, bonnet	Valvae lamina, sedes	Valvae caulis	Caule nut	filler	Handwheel
Carbon chalybe	Summus qualitas carbonis chalybe + carbida vel immaculata chalybe	Chrome immaculatam ferro	aluminium aereum	Graphite asbesto stipare	ferrum oboediens
Chromium nickel titanium steel	Diver immaculatus, immaculatus ferro + coagmentatum carbide	Chrome nickel-titanium immaculatum steel	aluminium aereum	Teflon	ferrum oboediens
Chromium nickel molybdenum titanium steel	Diver immaculatus, immaculatus ferro + coagmentatum carbide	Chrome nickel-titanium immaculatum steel	aluminium aereum	Teflon	ferrum oboediens
Chrome-molybdenum chalybeum	Admisce ferro + Carbide	Chrome-molybdenum chalybeum	aluminium aereum	Asbesto flexibile	ferrum oboediens

Praecipua figura et nexus dimensiones

Nominal diameter	Praecipuae dimensiones et nexus dimensiones
Nominal diameter	L	D	D1	D2	b	Z-d	H	D0
Z41H-16
15	130	95	65	45	14-2	4-Φ14	170	120
20	150	105	75	55	14-2	4-Φ14	190	140
25	160	115	85	65	14-2	4-Φ14	205	160
32	180	135	100	78	16-2	4-Φ18	270	180
40	200	145	110	85	16-3	4-Φ18	310	200
50	250	160	125	100	16-3	4-Φ18	358	240
65	265	180	145	120	18-3	4-Φ18	373	240
80	280	195	160	135	20-3	8-Φ18	435	280
100	300	215	180	155	20-3	8-Φ18	500	300
125	325	245	210	185	22-3	8-Φ18	614	320
150	350	280	240	210	24-3	8-Φ23	674	360
200	400	335	295	265	26-3	12-Φ23	811	400
250	450	405	355	320	30-3	12-Φ25	969	450
300	500	460	410	375	30-3	12-Φ25	1145	580
350	550	520	470	435	34-4	16-Φ25	1280	640
400	600	580	525	485	36-4	16-Φ30	1452	640
Z41H-25
15	130	95	65	45	16-2	4-Φ14	170	120
20	150	105	75	55	16-2	4-Φ14	190	140
25	160	115	85	65	16-2	4-Φ14	205	160
32	180	135	100	78	18-2	4-Φ18	270	180
40	200	145	110	85	18-3	4-Φ18	310	200
50	250	160	125	100	20-3	4-Φ18	358	240
65	265	180	145	120	22-3	8-Φ18	373	240
80	280	195	160	135	22-3	8-Φ18	435	280
100	300	230	190	160	24-3	8-Φ23	500	300
125	325	270	220	188	28-3	8-Φ25	614	320
150	350	300	250	218	30-3	8-Φ25	674	360
200	400	360	310	278	34-3	12-Φ25	811	400
250	450	425	370	332	36-3	12-Φ30	969	450
300	500	485	430	390	40-4	16-Φ30	1145	580
350	550	550	490	448	44-4	16-Φ34	1280	640
400	600	610	550	505	48-4	16-Φ34	1452	640

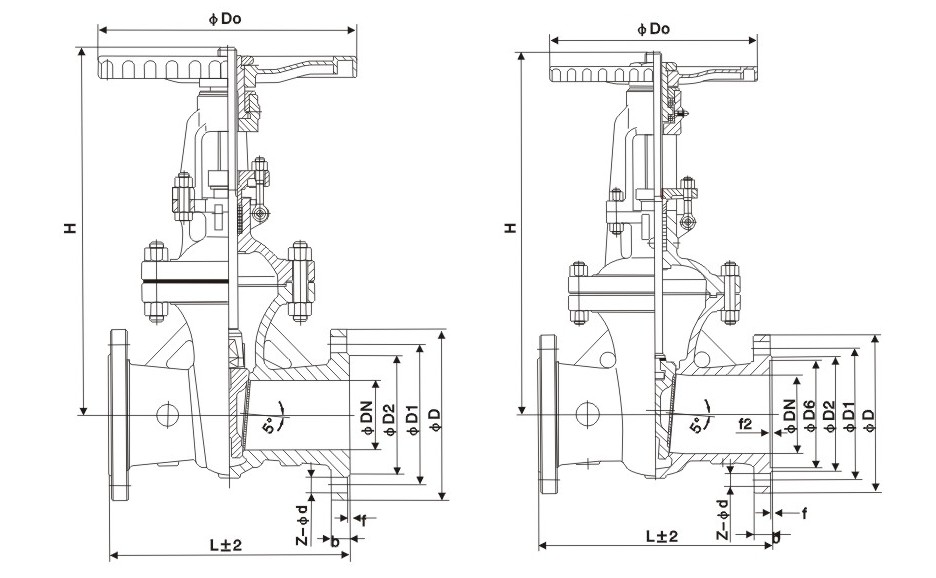

Structura pictura
