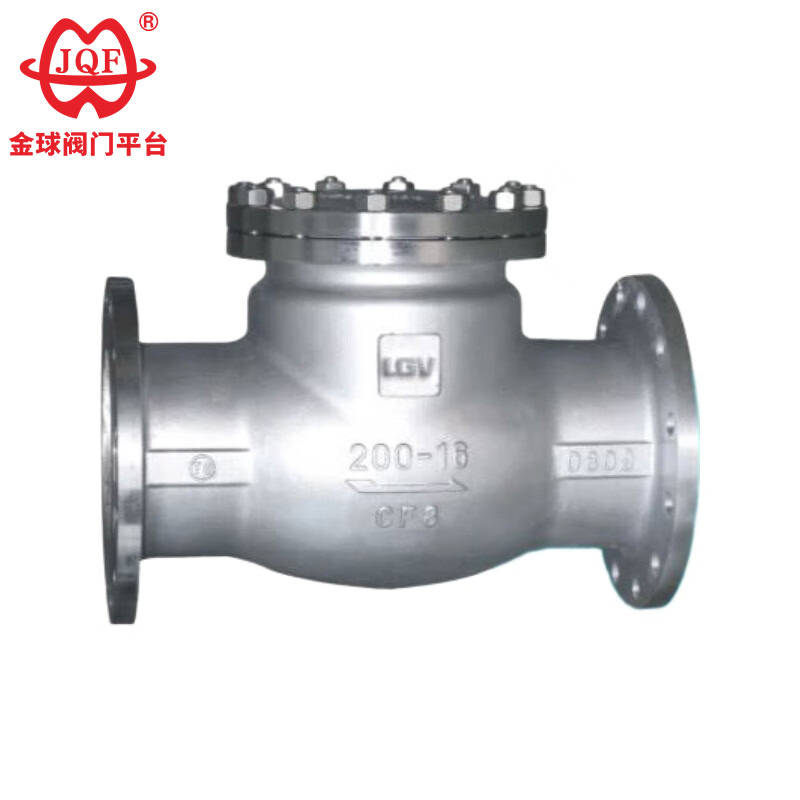

Jinqiu Valve, professionalis intemerata chalybeum valvae opificem in Sinis reprehendo, qui fabricas valvulas chalybe immaculatas conpescuit quarum rocker arma utantur nexum sphaerici structurae ad confluentes brachii et plectrum discus. Hoc permittit discus valvae certum gradum libertatis intra 360-gradum habere et aptas parvarum positionum compensatio praebet.
Hae valvulae late utuntur in industriis chemicis, metallurgicis et pharmaceuticis. H44W et H44Y typus valvulae chalybis immaculatae in limbis systematis adhibitae sunt, praesertim ne refluxus medii, ne sentinam eiusque motorem impellant a retro, et lacus medii in vasis prohibeant. Valvulae perscriptio etiam in pipelinis adhiberi potest ubi pressio altior quam ratio principalis vel auxiliaris.
1. Minimum pressionis stilla: Consilium plenae borealis valvae chalybis immaculatae reprimendo efficit, minimam resistentiam fluere apertam, salvificam energiam in systemate.
2. Operatio latae plene: Valvula chalybeis immaculata perscriptio non requirit vim externam copiae vel interventus manualis; solum in linea fluxus et pressura operatur.
3. Certa sigillatio: Offert metallo-ut-metallum vel molles (mollis) sedem ne regressum.
4. Robustum et simplex consilium: Valvula chalybs immaculata perscriptio paucas partes movens, altam constantiam habet, et minimam sustentationem requirit.
| exemplar | H44W-16P~250 | |
| Opus pressura（MPa | 1.6~25 | |
| propriis caliditas. | ≤550 | |
| Idonea media | Debilis mordax medium | |
| materia | Corpus, mitram, disc | Chrome nickel-titanium immaculatum steel |
| Superficiem signantes | Corpus signatum | |
| Pars Nomen | Materia nomen | |||
| Corpus | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
| cap | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
| Plate valvae | A351 CF8 | A351 CF8M | A351 CF3 | A351 CF3M |
| Superficiem signantes | Corpus / STL | Corpus / STL | Corpus / STL | Corpus / STL |
| Valvae hastile | A182 F304 | A182 F316 | A182 F304L | A182 F316L |
| Gasket | Flexibile graphite | Flexibile graphite | Flexibile graphite | Flexibile graphite |
| fulmen | A193 B8 | A193 B8M | A193 B8 | A193 B8M |
| Nucis | A194 8 | A194 8M | A194 8 | A194 8M |
| operating temperatus | -46~425℃ | -46~425℃ | -46~425℃ | -46~425℃ |
| Idonea media | infirma mordax | infirma mordax | infirma mordax | infirma mordax |
| Nominal diameterDN | Praecipuae dimensiones et nexus dimensiones | ||||||
| L | D | D1 | D2 | b | Z-d | H | |
| H44W-16P H44W-16R | |||||||
| 25 | 160 | 115 | 85 | 65 | 16 | 4-14 | 100 |
| 32 | 180 | 135 | 100 | 78 | 16 | 4-18 | 105 |
| 40 | 200 | 145 | 100 | 85 | 16 | 4-18 | 115 |
| 50 | 230 | 160 | 125 | 100 | 16 | 4-18 | 135 |
| 65 | 290 | 180 | 145 | 120 | 18 | 4-18 | 142 |
| 80 | 310 | 195 | 160 | 135 | 20 | 8-18 | 165 |
| 100 | 350 | 215 | 180 | 155 | 20 | 8-18 | 180 |
| 125 | 400 | 245 | 210 | 185 | 22 | 8-18 | 210 |
| 150 | 480 | 280 | 240 | 210 | 24 | 8-23 | 233 |
| 200 | 500 | 335 | 295 | 265 | 26 | 12-23 | 304 |
| 250 | 550 | 405 | 355 | 320 | 30 | 12-25 | 348 |
| 300 | 650 | 460 | 410 | 375 | 30 | 12-25 | 390 |
| 350 | 750 | 520 | 470 | 435 | 34 | 16-25 | 430 |
| 400 | 850 | 580 | 525 | 485 | 36 | 16-30 | 468 |
| H44W-25P H44W-25R | |||||||
| 25 | 160 | 115 | 85 | 65 | 16 | 4-14 | 100 |
| 32 | 180 | 135 | 100 | 78 | 16 | 4-18 | 105 |
| 40 | 200 | 145 | 110 | 85 | 16 | 4-18 | 115 |
| 50 | 230 | 160 | 125 | 100 | 20 | 4-18 | 160 |
| 65 | 290 | 180 | 145 | 120 | 22 | 8-18 | 175 |
| 80 | 310 | 195 | 160 | 135 | 22 | 8-18 | 185 |
| 100 | 350 | 230 | 190 | 160 | 24 | 8-23 | 220 |
| 125 | 400 | 270 | 220 | 188 | 28 | 8-25 | 248 |
| 150 | 480 | 300 | 250 | 218 | 30 | 8-25 | 276 |
| 200 | 550 | 360 | 310 | 278 | 34 | 12-25 | 350 |
| 250 | 650 | 425 | 370 | 332 | 36 | 12-30 | 410 |
| 300 | 750 | 485 | 430 | 390 | 40 | 16-30 | 430 |
| 350 | 850 | 550 | 490 | 448 | 44 | 16-34 | 518 |
| 400 | 950 | 610 | 550 | 505 | 48 | 16-34 | 560 |
