Princeps Pressura Anglus Type Valve Globe

Valvae JQF valvae officinas et fabrica in Sinis est, qui in servitio et mercatura chalybi immaculati et carbonis globuli valvulae, valvulae portae, valvulae globi, valvulae reprimendae, etc. Haec durabilis alta pressio angulus generis globi valvae incisionis valvae technologiae globalis utitur et ad usum systematis productionis ammoniaci synthetica optime apta est et systemata refrigerationis plantae fecundans. Durare et facile est ponere. Unum-statur, summus qualitas valvae solutiones clientibus per orbem terrarum praebemus.

Mitte Inquisitionem

depictio producti

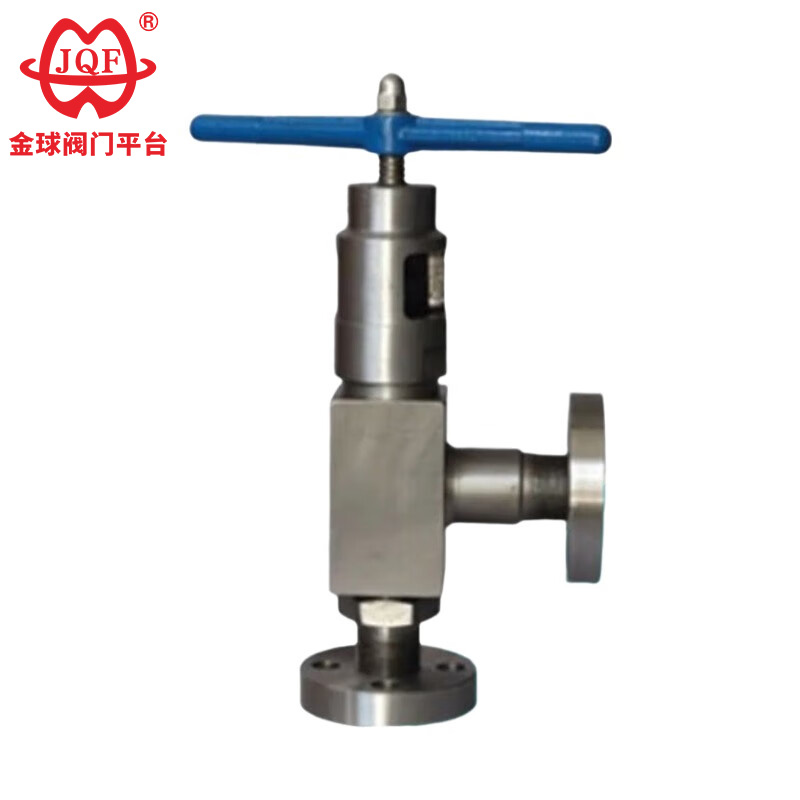

The biggest advantage of this customized high pressure angle type globe valve manufactured by Foshan Jinqiu Valve Co., LTD. supplier is that it can be installed at bends in piping systems, eliminating the need for 90° elbows and simplifying operation. This type of valve is ideally suited for use in synthetic ammonia production systems and refrigeration systems in fertilizer plants. For example, models J44H-160, J44H-320, L44H-160, and L44H-320 are all specifically designed for ammonia production systems.

Quid nos elige?

Lata lectio exemplorum;
Amplis diametris altae qualitatis angulum globum valvae generis ab DN15 ad DN200 offerimus, necnon varias pressiones classes, ut 1.6MPa et 2.5MPa (vide tabulam specificationem supra) ad occurrendum in pressione pipeline et pressione diversa requisita.
Perfectum ministerium suscipio:
Consultatio professionalis: Turma nostra technica tibi subsidia delectu providere potest ut plectrum rationi tuae perfecte respondeat.
Quality Assurance: Clarium tempus praestat pro nostris effectibus et experimentis specimenque praebemus.
Logistics opportunus: Fascis fasciculus fortis, componentes key colorem habent clarum codicem, opportunum tibi est numerare et in situ instituere, nos quoque vecturae internationalis efficientes disponere possumus.

Signa exsequendam

Sequere praecepta	VEXILLUM
Consilium et fabricare	GB 12233/GB 12235
Structura longitudinis	GB 12221/JB96（Longum series）
Structura longitudinis	GB78/JB79（GB、HG、SH）
Pressura test	GB/T 13927
Sign	GB 12220
Availability	GB/T12252

Angulus valvae / suffocare 1.6MPa principalis nexum magnitudine

DN	L	D	D1	D2	f	b	z-φd	Do	H1	H2
15	65	95	65	45	2	14	4-φ14	100	240	265
20	75	105	75	55	2	16	4-φ14	100	245	270
25	80	115	85	65	2	16	4-φ14	120	250	275
32	95	135	100	78	2	18	4-φ18	140	260	290
40	100	145	110	85	2	18	4-φ18	140	290	325
50	115	160	125	100	2	20	4-φ18	160	300	335
65	145	180	145	120	2	20	4-φ18	180	355	400
80	155	195	160	135	2	22	4-φ18	240	400	450
100	175	215	180	155	2	24	8-φ18	240	455	495
125	200	245	210	185	2	26	8-φ18	280	530	560
150	240	280	240	210	2	28	8-φ23	320	605	650
200	275	335	295	265	2	30	8-φ23	360	650	770

Angulus valvae / suffocare 2.5MPa principalis nexus size

DN	L	D	D1	D2	f	b	z-φd	Do	H1	H2
15	65	95	65	45	2	16	4-φ14	120	245	270
20	75	105	75	55	2	16	4-φ14	120	250	275
25	80	115	85	65	2	16	4-φ14	140	260	290
32	95	135	100	78	2	18	4-φ18	140	290	325
40	100	145	110	85	3	18	4-φ18	160	300	335
50	115	160	125	100	3	20	4-φ18	180	355	400
65	145	180	145	120	3	22	8-φ18	220	400	450
80	155	195	160	135	3	22	8-φ18	280	450	495
100	175	230	190	160	3	24	8-φ23	320	530	590
125	200	270	220	188	3	28	8-φ25	380	600	650
150	240	300	250	218	3	30	8-φ25	400	650	770
200	275	360	310	278	3	34	12-φ23	450	700	850
